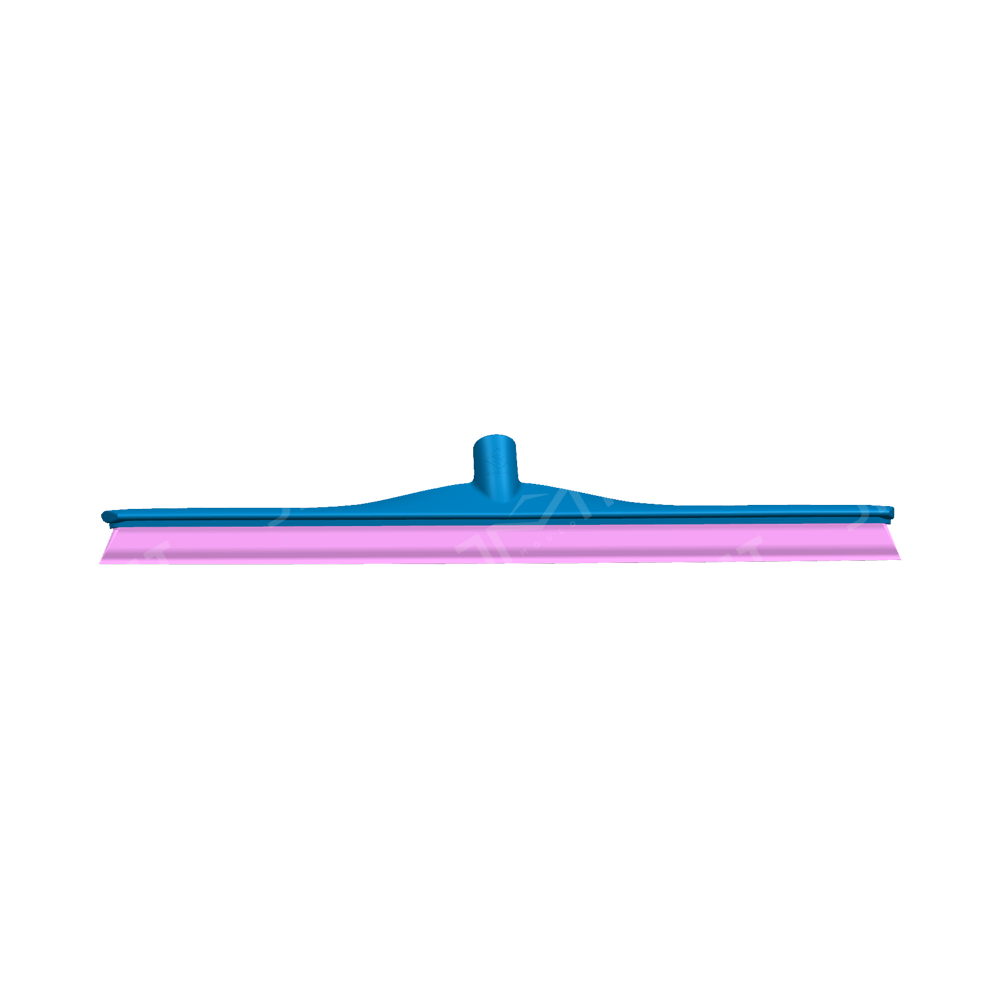

Glass brush plastic molud

Glass brush plastic molud
with standard hardness for cavity and core, Germany steel for cavity and core, high speed injection, fully automatic ejection system.With years of working experience and state-of-the-art quipment, we can gurantee our customers high quality products, timely delivery and competive price.

After-sales Services

JMT Mould is a local top 3 mould supplier with over 20 years experience in cleaning mould industry. We can customize all the plastic mould for you.



How to start the Glass Brush mould project?

1. For the design of the glass brush mould structure, our company has an experienced design team that has carried out sufficient mould flow analysis during the design stage to ensure that the wall thickness of the dustpan is uniform.

2. Regarding the selection of the steel for the dustpan, since the glass brush has higher surface requirements, most of our recommended choices: P20, 718, 2738, 2316, NAK80, S136, H13, etc. JMT mould are good to choose P20 and 718 at reasonable prices, and can also make the surface of the product reach a certain degree of smoothness. For JMT mould with higher output, beryllium bronze inserts can be used on the top of the core, which is conducive to product injection and can effectively promote product cooling.

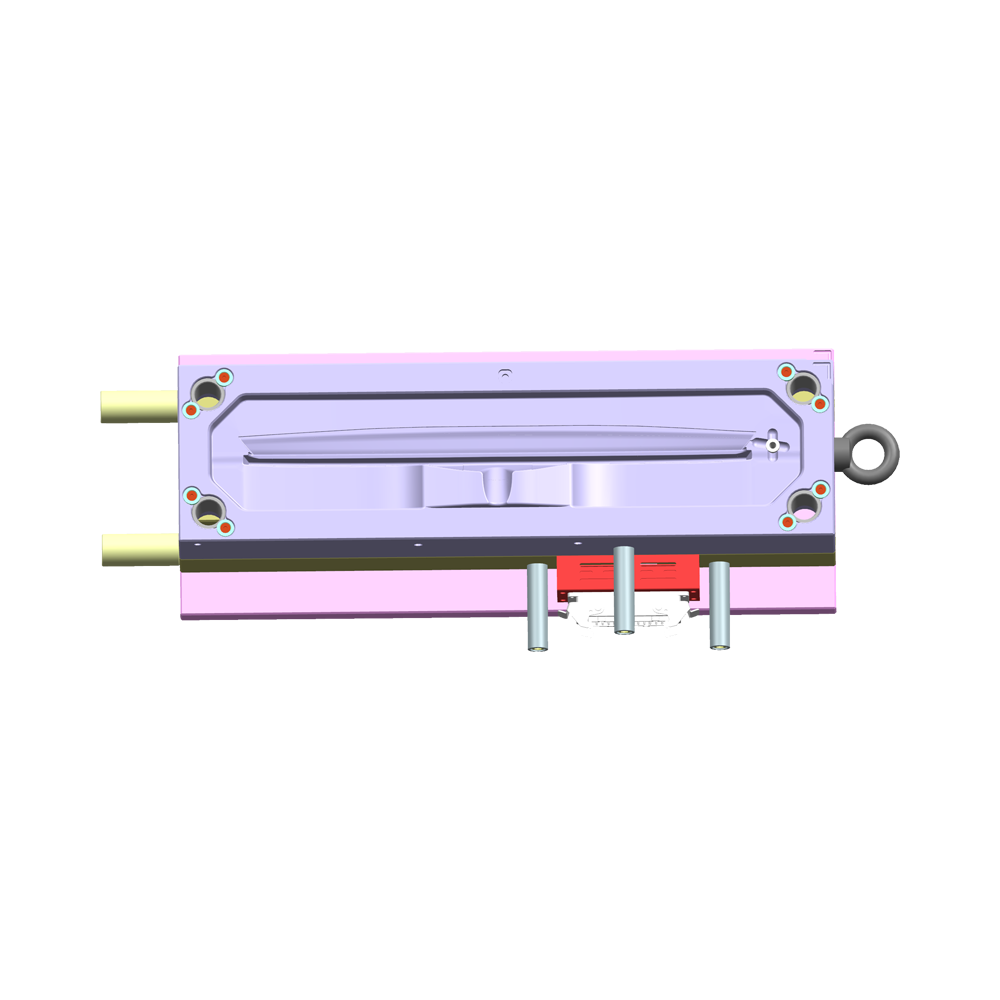

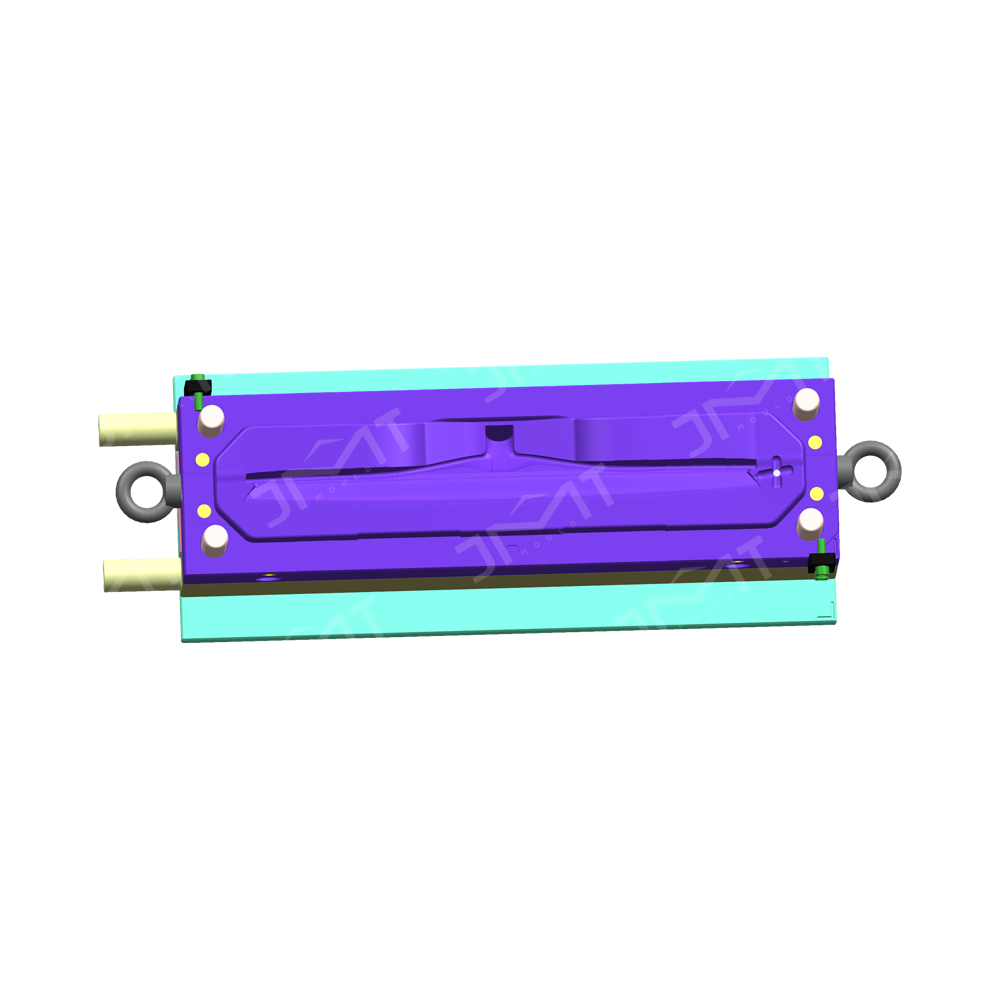

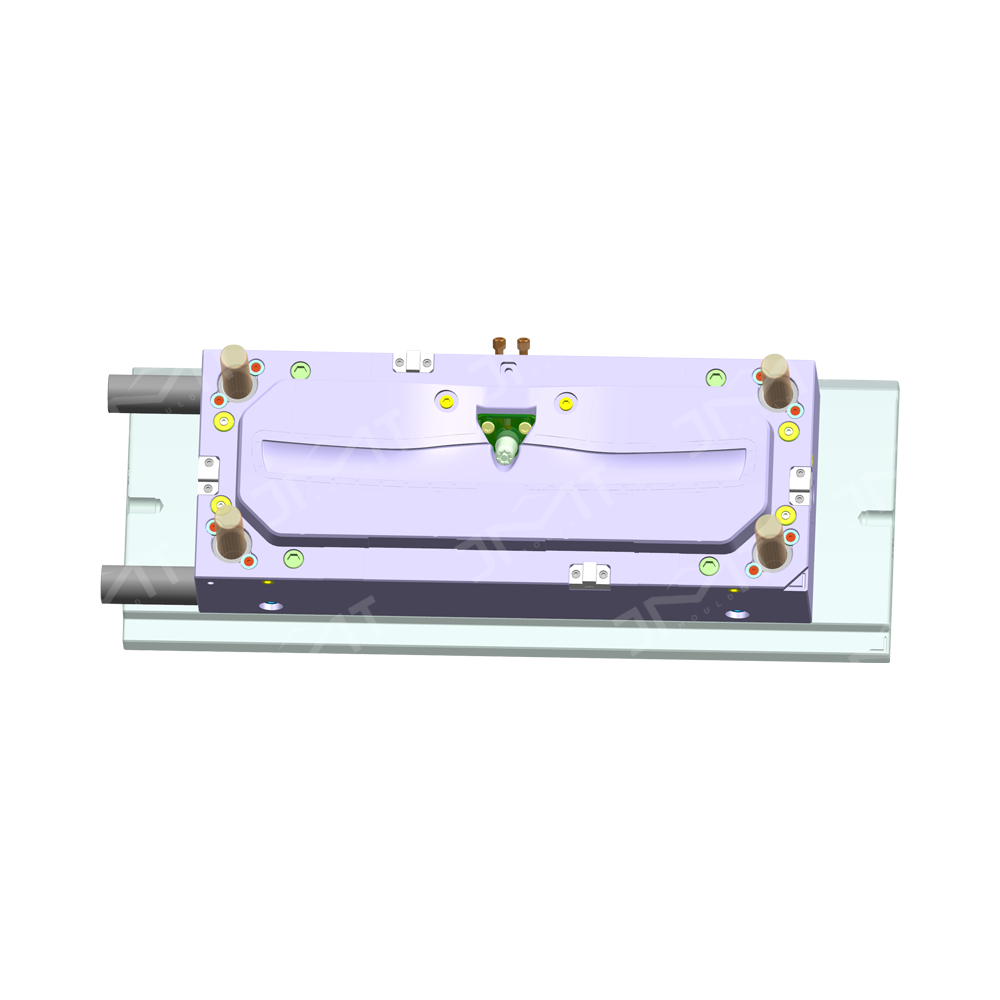

Mould Description

Part Name	Glass brush plastic mould
Plastic resin	>PP<
Mould cavity steel	2738
Mould Core steel	2738
Gate system	hot runner
Manufacture time (day)	50 DAYS
Mould life	5,000,000
Cooling line connector type	DME NS350 SERIES quick coupling, excellent cooling system design, cooling design will as many as possible to cooling best
